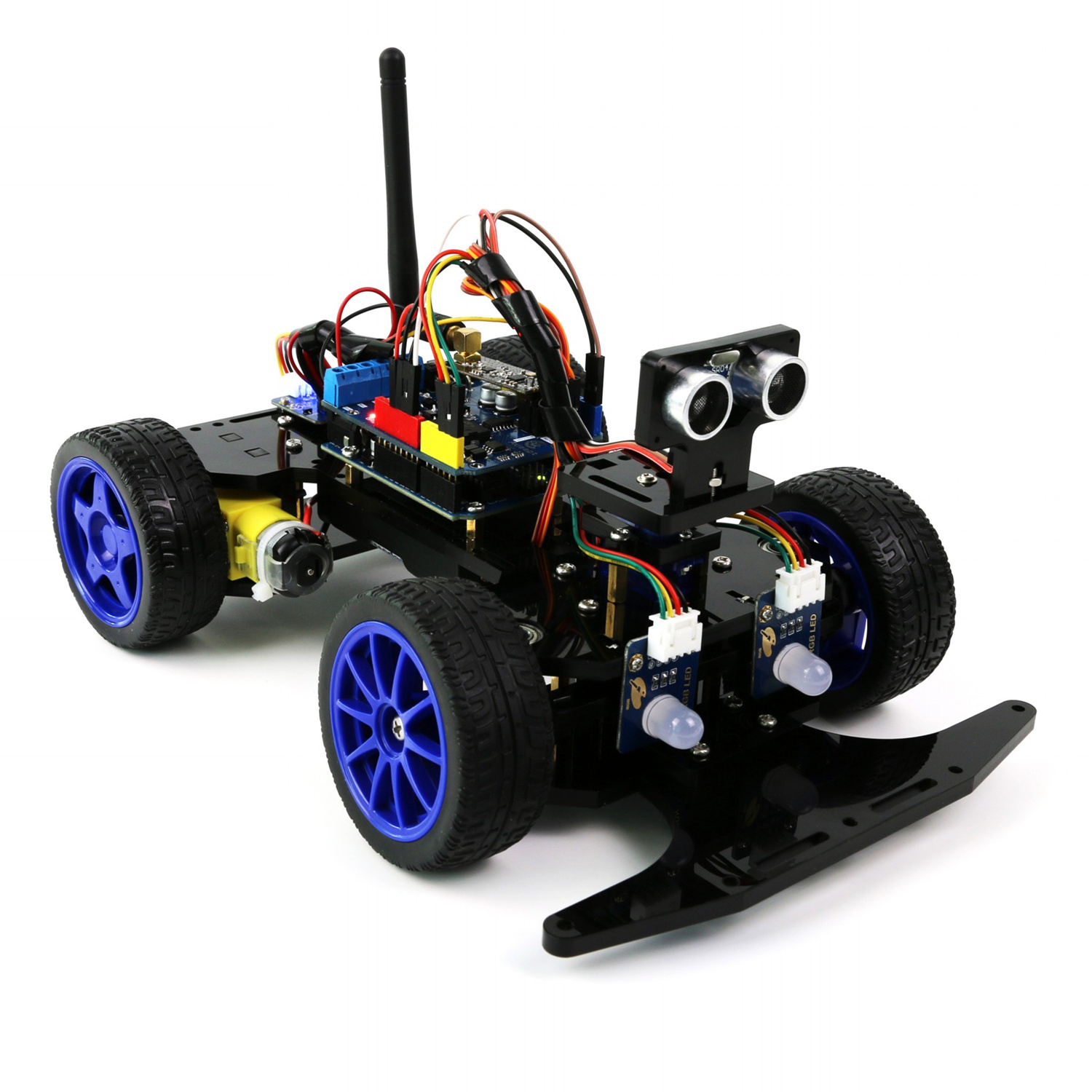

Adeept Remote Control Smart Car Kit for Arduino based on NRF24L01 2.4G Wireless, Robot Starter Kit with PDF Guidebook/Tutorial

Description

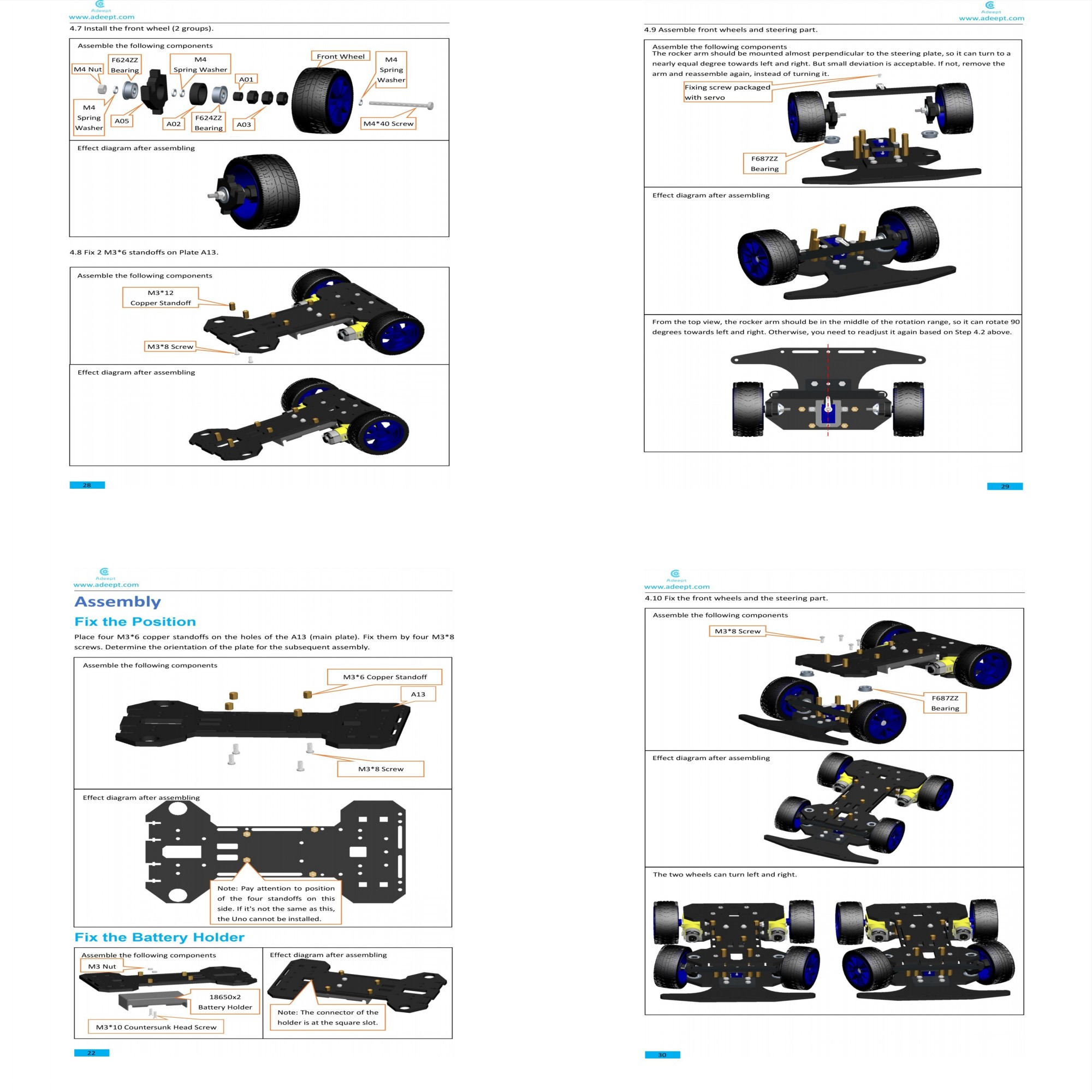

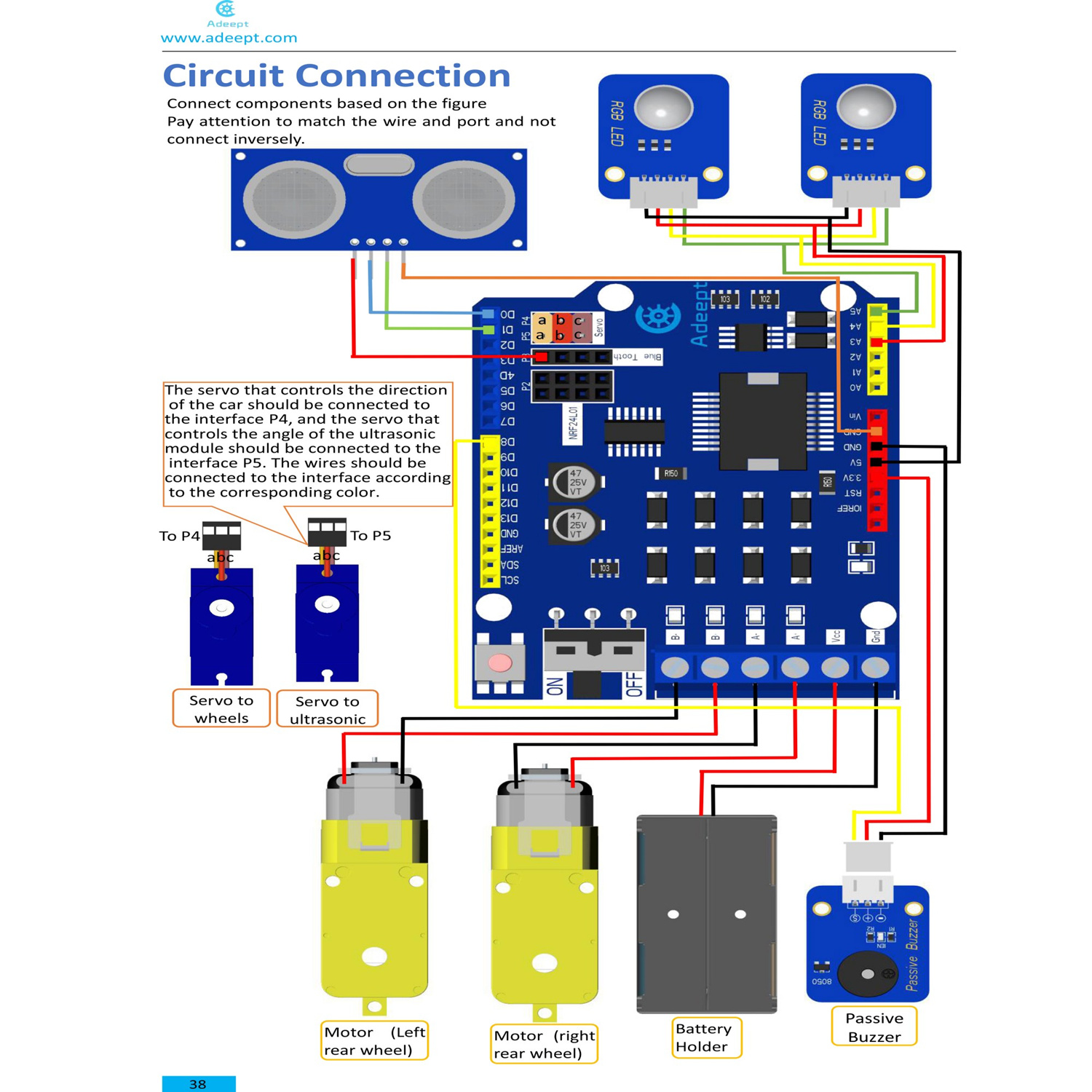

The smart car kit is designed based on Arduino UNO R3 and Nano. This is a complete and fun Arduino learning kit. We carefully prepared a detailed guidebook/tutorial(PDF), the guidebook contains complete circuit diagrams and assembly steps, according to our tutorial, you will be able to easily build your own intelligent remote control car.

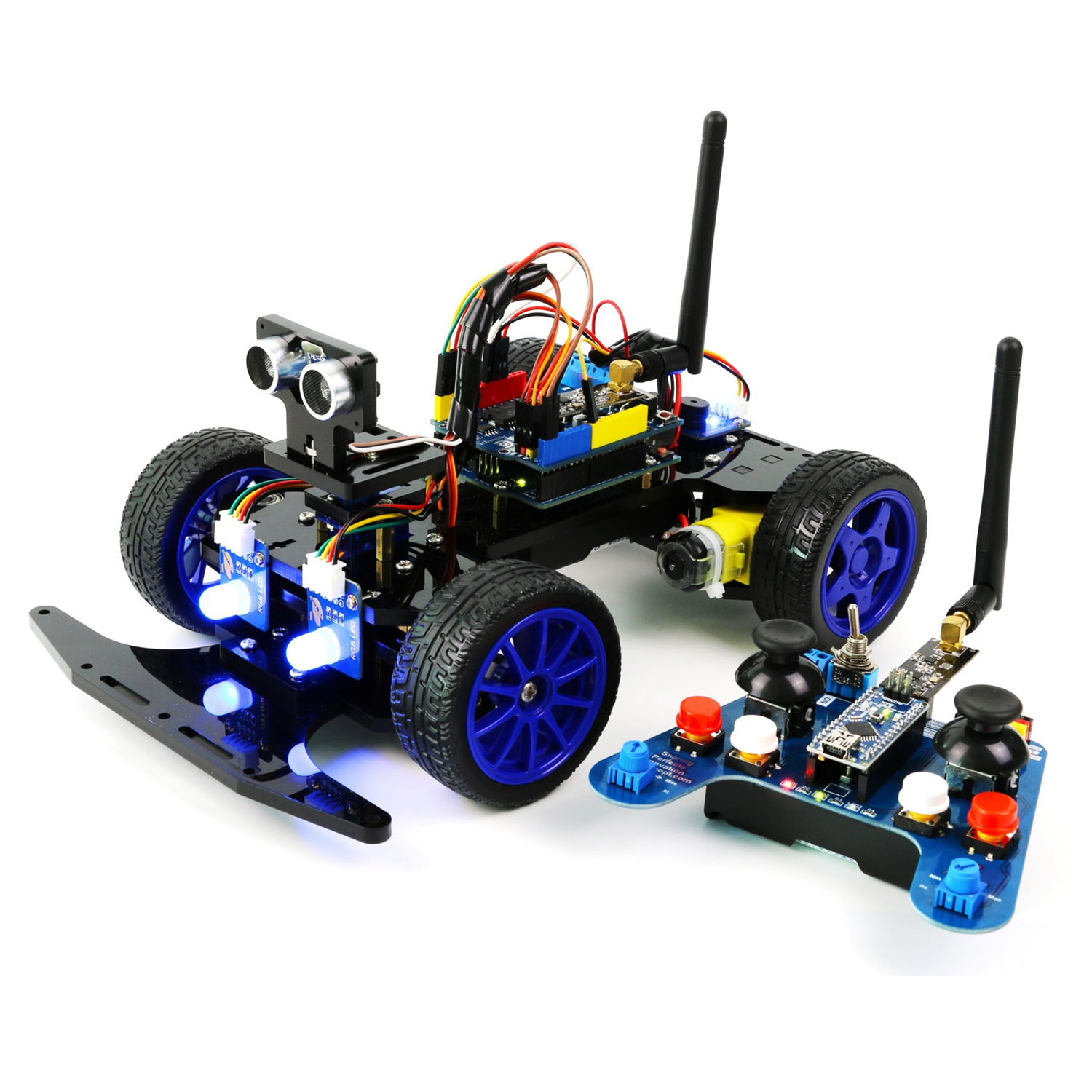

The entire system is divided into two parts, the car and the remote control, the communication between them based on NRF24L01 2.4G wireless module. In addition, this car also has WiFi(ESP8266) and Bluetooth(HC-06) interface, it has a strong scalability.

Features:

The smart car kit is designed based on Arduino UNO R3 and Nano. This is a complete and fun Arduino learning kit. We carefully prepared a detailed guidebook/tutorial(PDF), the guidebook contains complete circuit diagrams and assembly steps, according to our tutorial, you will be able to easily build your own intelligent remote control car.
The entire system is divided into two parts, the car and the remote control, the communication between them based on NRF24L01 2.4G wireless module.
In the remote control mode, you can control the smart car through the remote control, so that the car forward, back, turn left and turn right; in the automatic mode, the car will automatically avoid obstacles.
Quick-responding technical support for free.
Working Voltage: DC 7V~12V, Powered by four 18650 rechargeable lithium batteries.(This kit does not contain batteries and you need to prepare yourself)

Tutorials Link:
http://www.adeept.com/learn/details/id/4

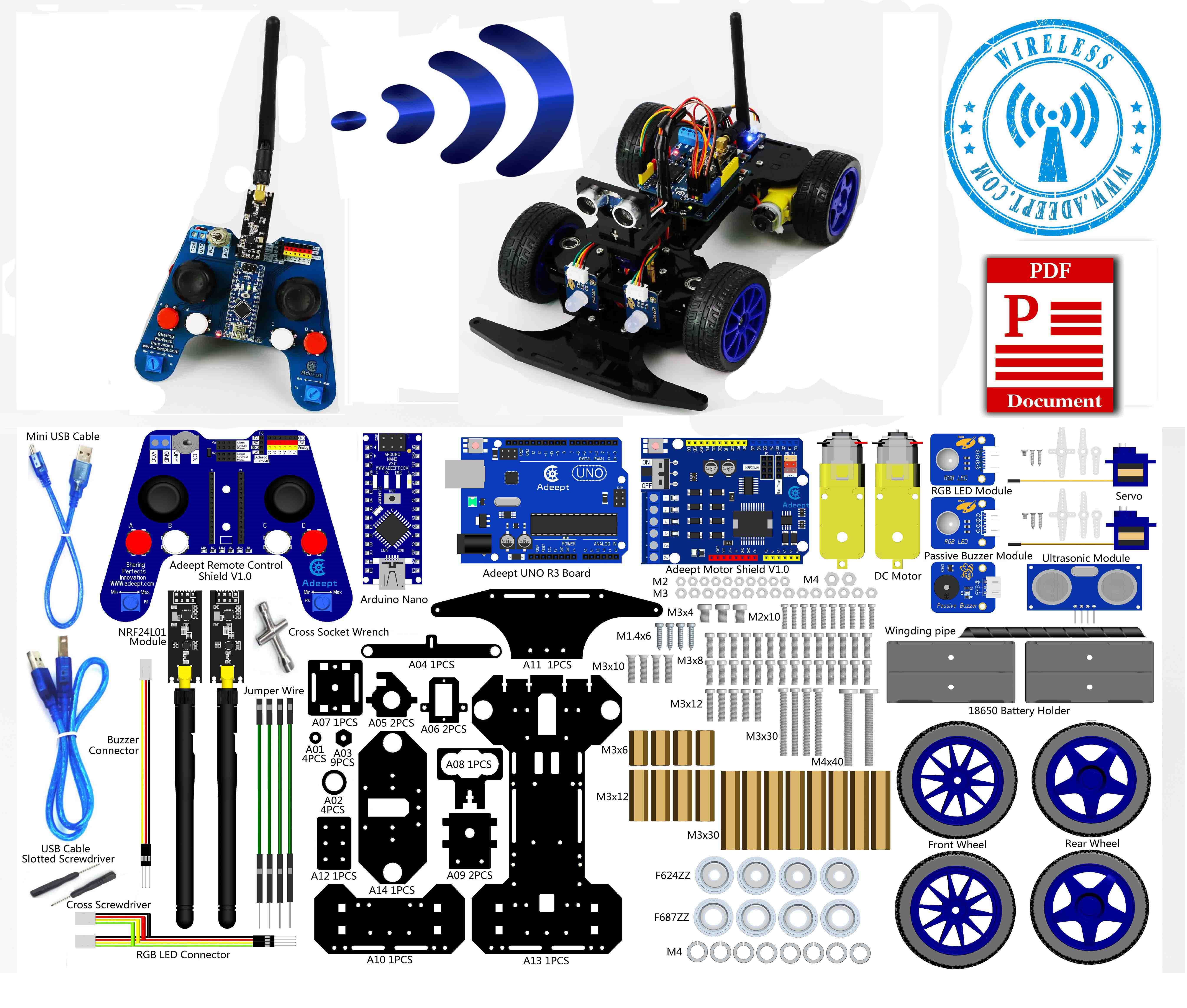

Package List:
1x Adeept Uno R3

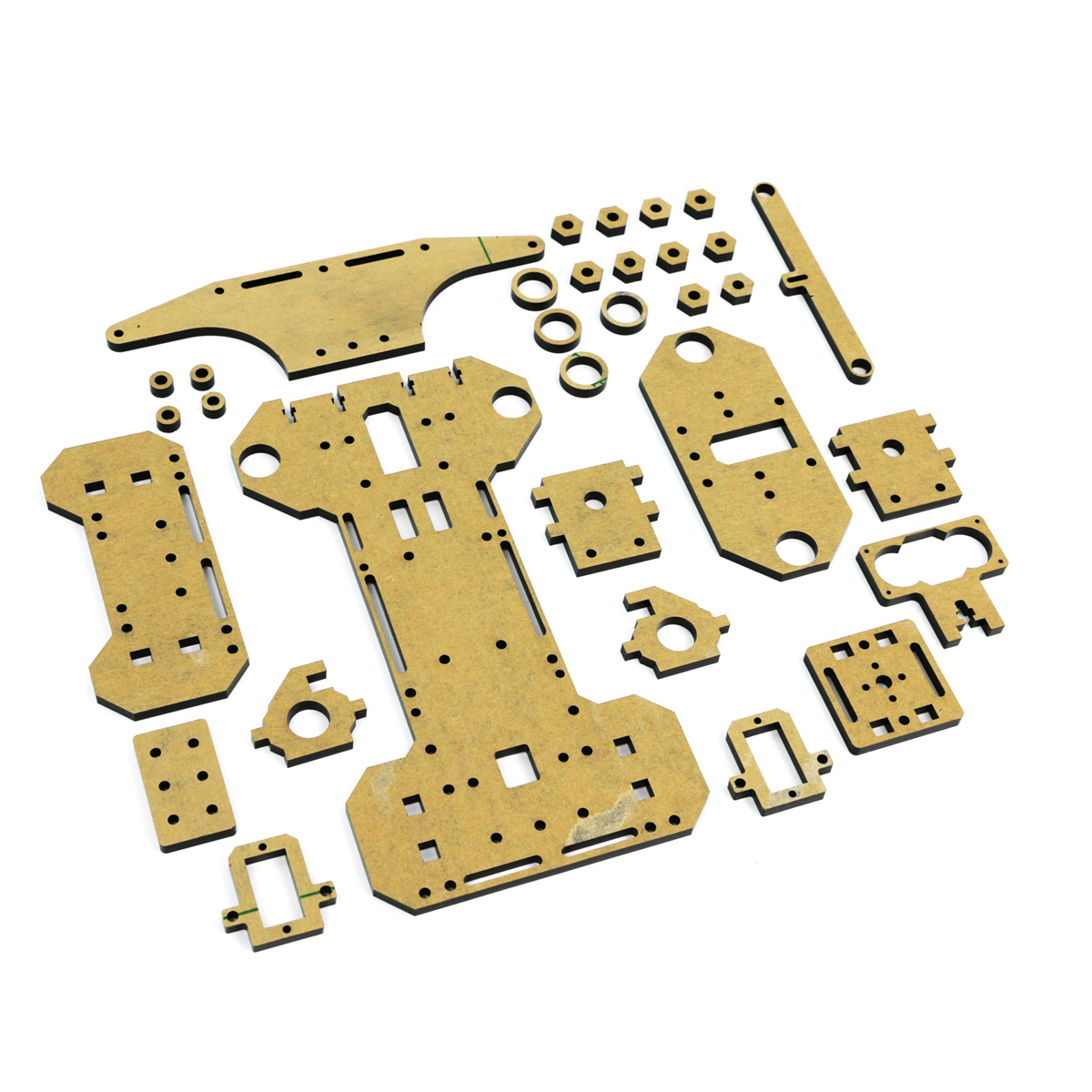

1x Adeept Acrylic
1x Arduino Nano

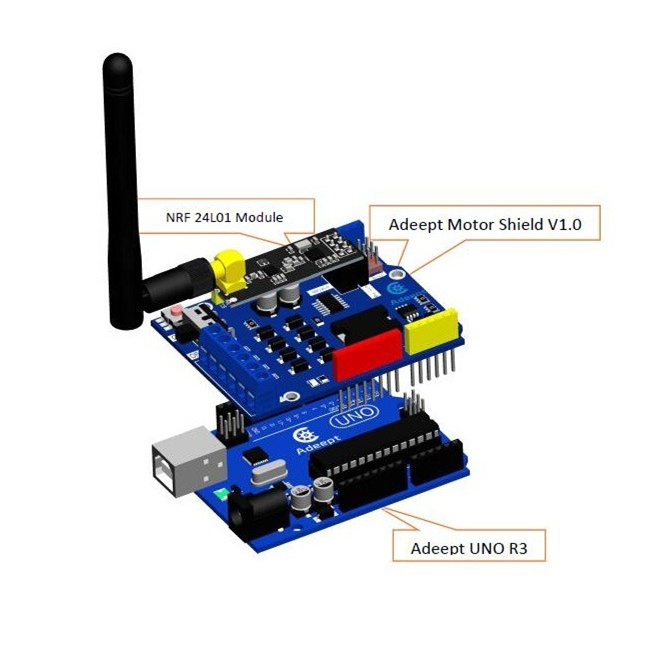

1x Adeept Motor Shield V1.0

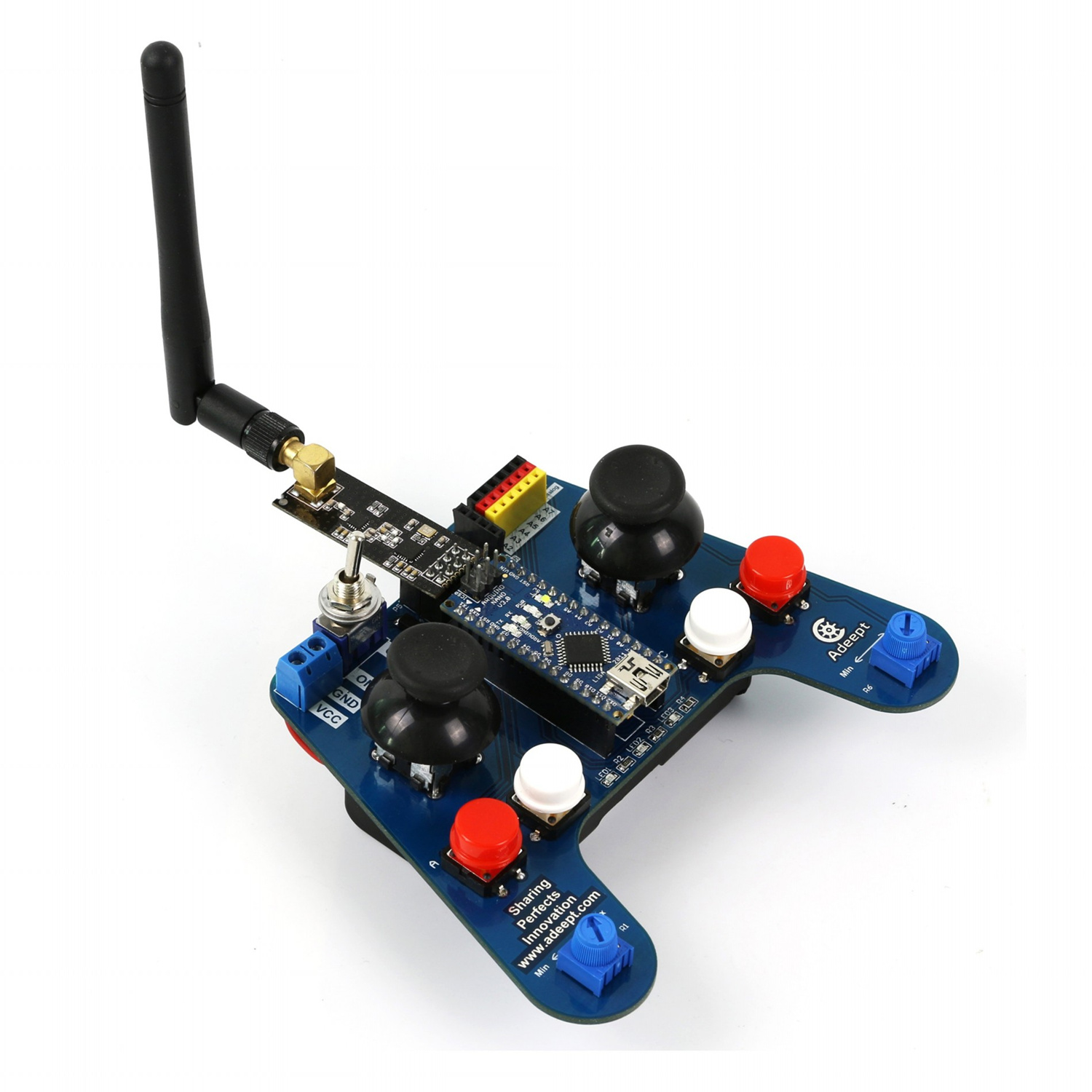

1x Adeept Remote Control Shield V1.0
2x Adeept RGB LED Module
1x Adeept Passive Buzzer Module
2x Servo
1x HC-SR04 Ultrasonic Module
2x DC Motor
2x NRF24L01 Module
12x M2 Nut
18x M3 Nut
2x M4 Nut
12x M2*10 Screw
4x M3*4 Screw
32x M3*8 Screw
6x M3*12 Screw
6x M3*30 Screw
2x M4*4 Screw
4x M3*10 Countersunk Head Screw
6x M1.4*6 Self-tapping Screw
4x M3*6 Copper Standoff
6x M3*12 Copper Standoff
8x M3*30 Copper Standoff
4x F687ZZ Bearing
4x F624ZZ Bearing
10x M4 Spring Washer
1x Cross Screwdriver
1x Slotted Screwdriver
1x Cross Socket Wrench

Note:
Please note that you need to prepare 18650 batteries yourself.

Recent Reviews

ByPhilipp - Germany
Dec 19, 2018

Was this review helpful?

(0) | (0)

Share to facebook

Nice kit. It's easy to assemble but the provided code is not really nice. Some times there is a loose connection between the boards and one of my motors in temporarily not working. The nRF24l01 board is also very unstable. That's why I've printed a support for it: www.thingiverse.com/thing:3295780
