Adeept Laser Piano, Laser Harp Kit for Arduino UNO R3 | STEAM Starter Kit

Description

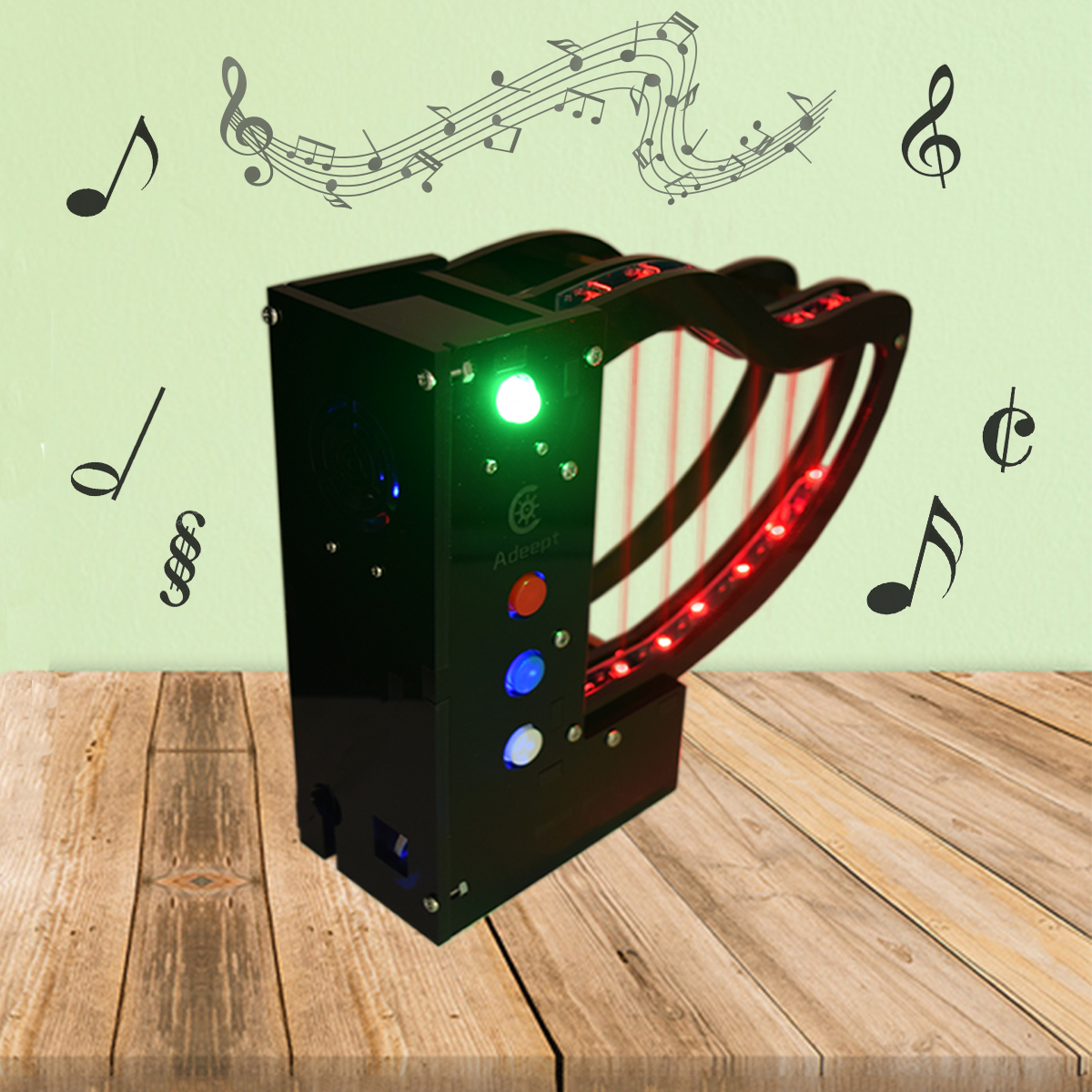

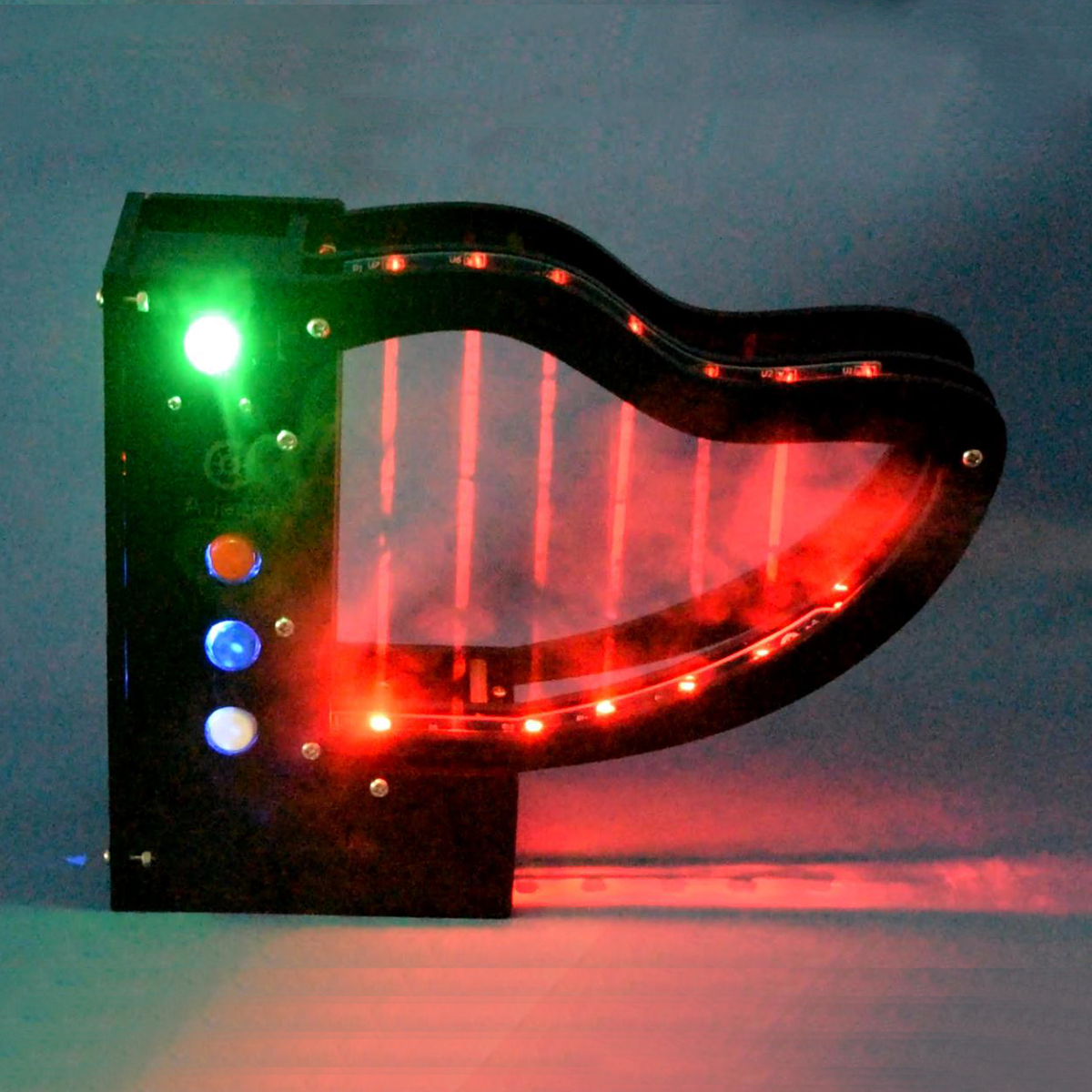

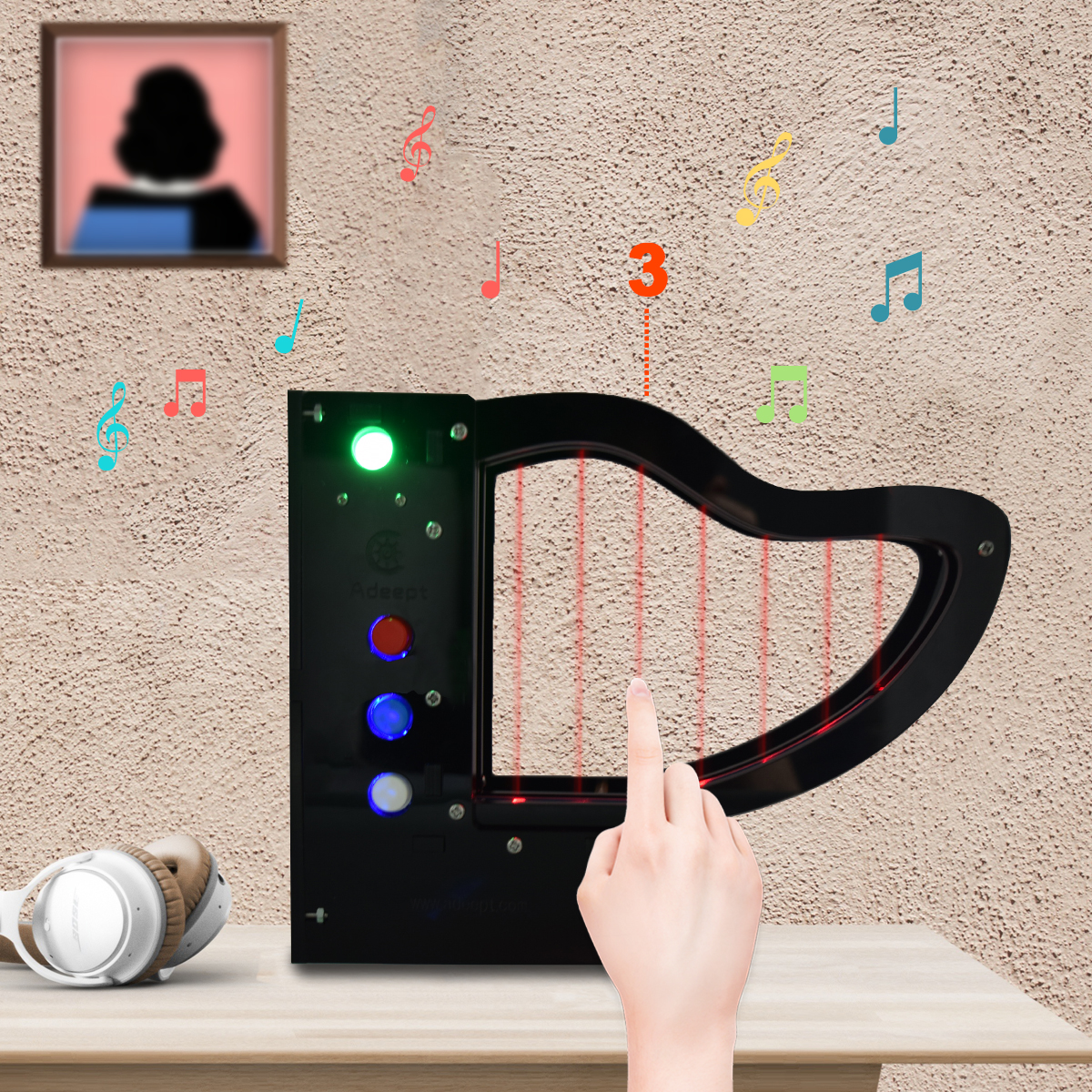

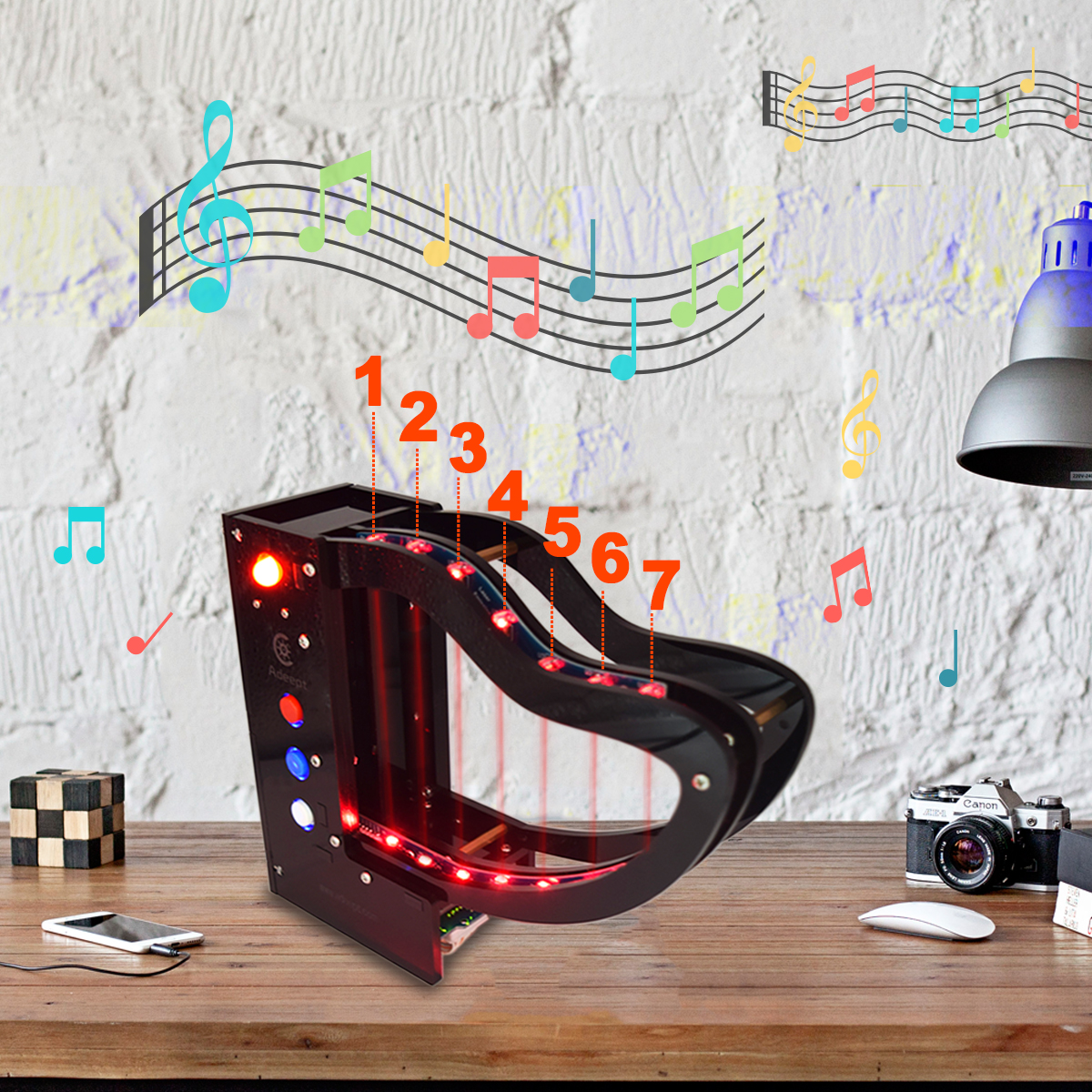

The Adeept Laser Harp Kit is a harp without strings, with bright laser beams used instead. You only need to pluck the laser beams to play a piece of music as done with strings.

Functions:
1. When you switch on the laser harp, it's in the state of standby. Only three button modules and the power indicator of the speaker module are on.
2. In the standby state, press and hold the white button for 3s, then the laser and the RGB LED light up. So the harp is turned on. Press and hold the button for another 3s, the laser and RGB LED will dim. The harp will return to standby.

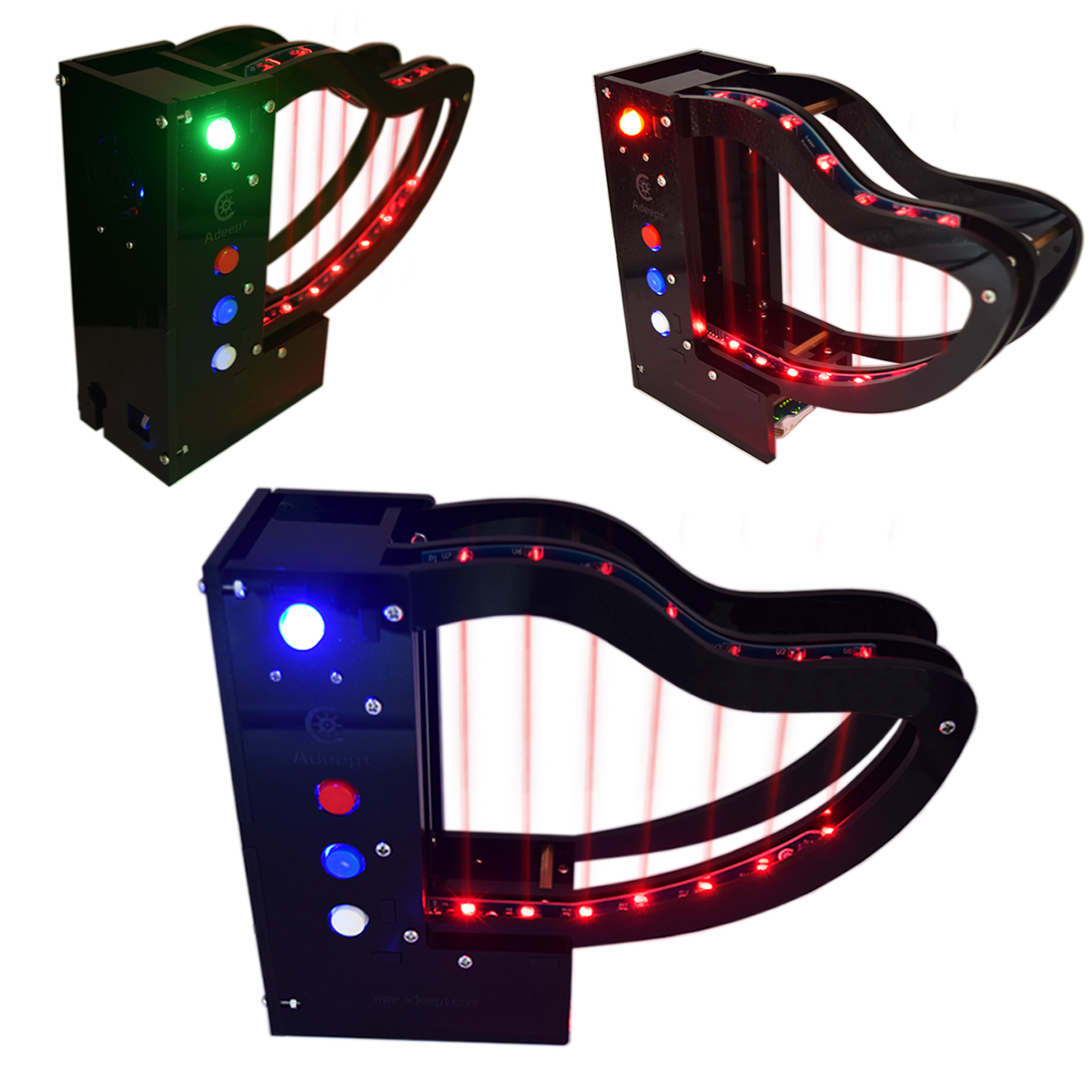

3. When the harp is on, press the white button and the LED will turn to red. Now the harp is in the bass of C chord. Block the laser beam left to right and the harp will ring different bass sounds when the light changes colors.
4. When the harp is on, press the blue button, the light will turn to green and the harp is in the alto. Block the beams, the harp will make different alto sounds with the light changing colors.
5. When the harp is on, press the red button, the light will shine blue and the harp is in the soprano. Block the beams, the harp will make different soprano sounds with the light changing colors
7. When the harp is on, turn it upside down and it will turn to the standby state. Turn it back again and it's switched on.
8. Adjust the volume of the speaker. Rotate the R3 potentiometer on the speaker module to adjust the volume.

Tutorials Link:
https://www.adrive.com/public/XTWGUP/Adeept_Laser_Harp_Kit_for_Arduino_V1_1.zip

YouTube Video Link：
https://youtu.be/LQLqkfYGews

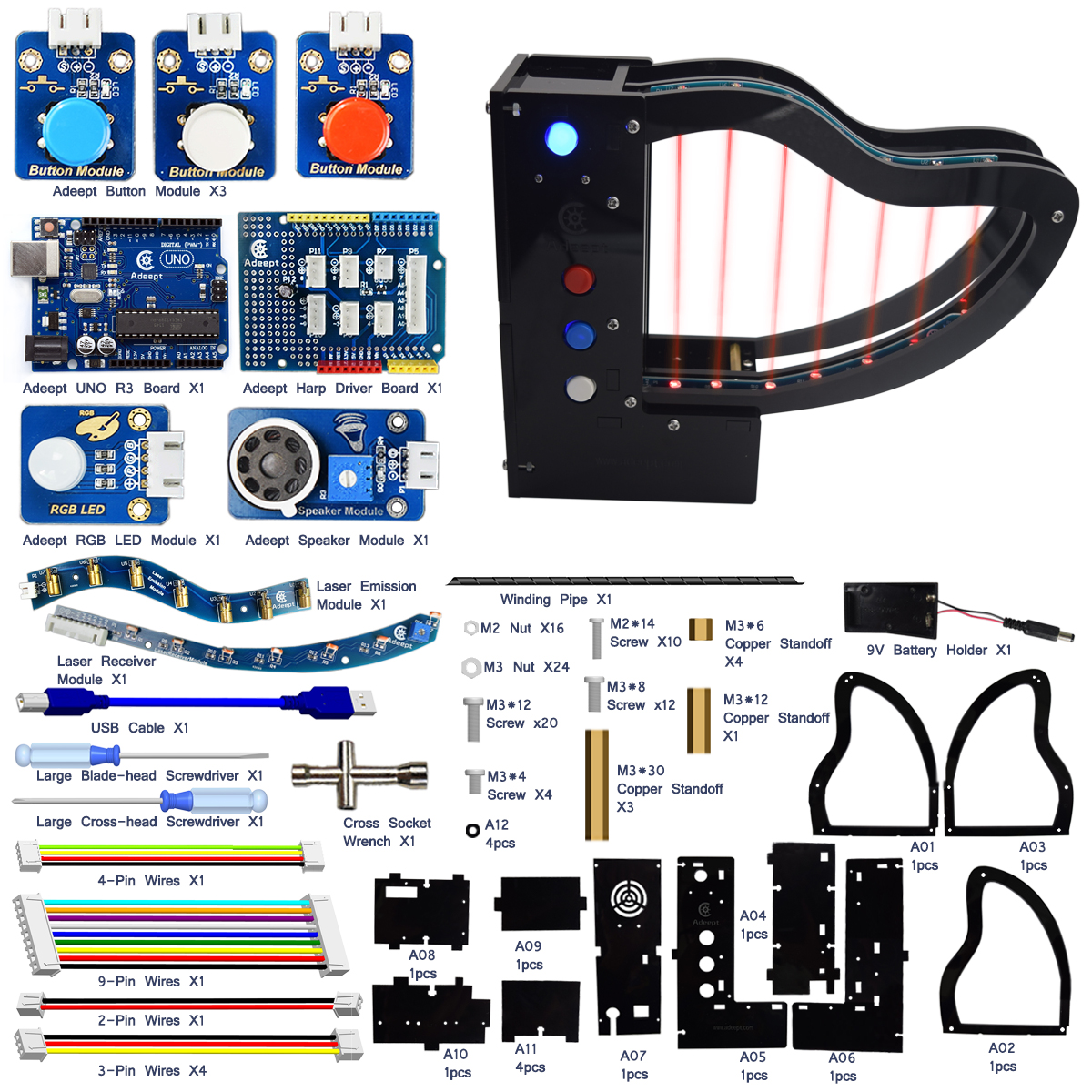

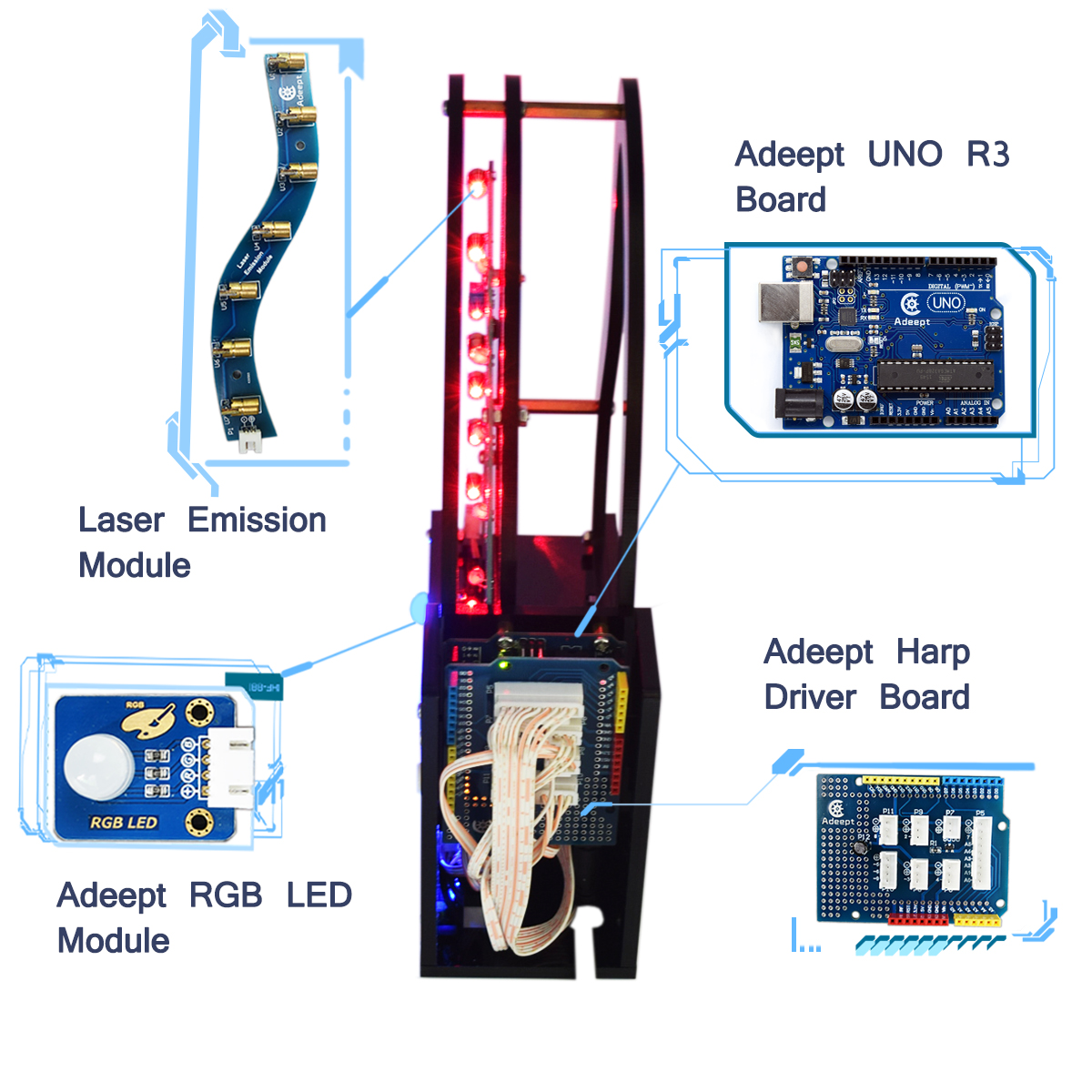

Package List:
1x Harp Acrylic Plates
1x Adeept UNO R3 Board

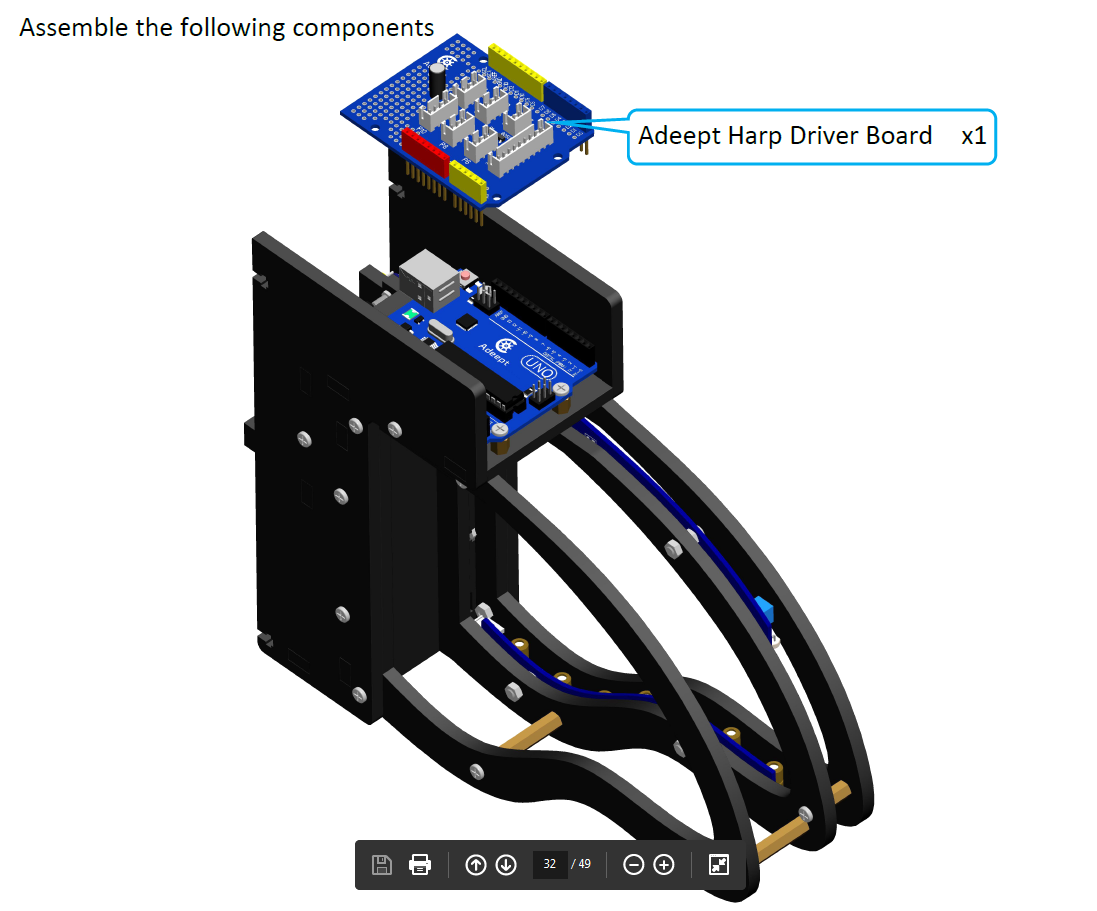

1x Adeept Harp Driver Board
1x Adeept RGB LED Module
1x Adeept Speaker Module
1x Laser Receiver Module
1x Laser Emission Module
3x Adeept Button Module
1x 9V Battery Holder
1x 2-Pin Wires
4x 3-Pin Wires
1x 4-Pin Wires
1x 9-Pin Wires
1x USB Cable
1x Cross Socket Wrench
1x Large Cross-head Screwdriver
1x Large Blade-head Screwdriver
20x M2 Nut
28x M3 Nut
12x M2*14 Screw
4x M3*4 Screw
14x M3*8 Screw
24x M3*12 Screw
4x M3*6 Copper Standoff
2x M3*12 Copper Standoff
4x M3*30 Copper Standoff

Recent Reviews

ByReally cool !
Oct 22, 2018

Was this review helpful?

(0) | (0)

Share to facebook

Quality is top notch. However I have received a malfunctioning board. The blue led (pin 9) is dead.
I'm currently improving the code so it can achieve some greater sound effects.
Please, adeept, can you put the buzzer on pin 9 or 10 so we can use PWM ? You put it in pin 8 so we have to use a pin bridge and thus having the blue pin always on to use PWM with the buzzer.
Find my code here: github.com/malouf/Laser-Harp.

BySalvatore
Jun 08, 2018

Was this review helpful?

(0) | (0)

Share to facebook

I have the hobby of electronics, and together with my son we have built different adeept kits, which are fantastic both for the original ideas and for the indications provided, which allow you to follow step by step in the construction. This particular project is very interesting as it teaches to use laser modules. It's very funny at the end, to be able to play simply inserting the fingers between the laser beams! The product arrived in Italy after just 4/5 days via DHL, fantastic!
