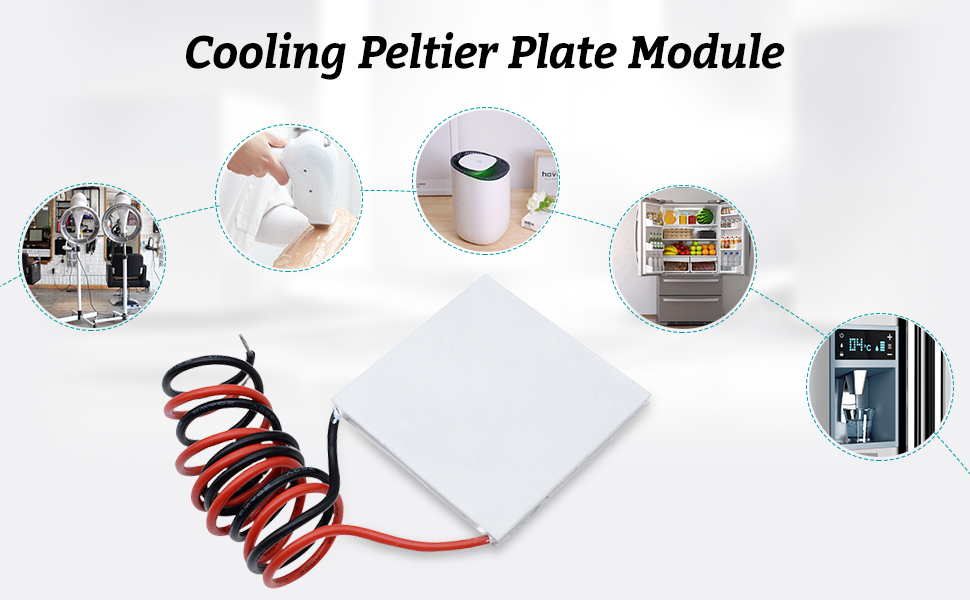

5pcs TEC1-12706 12V 6A 40X40MM Heatsink Thermoelectric Cooler Peltier Plate Module

Item Code: TEC1-12706
Shipping Cost:
to
Delivery:
Estimated between
Units
  • Description

About this item:

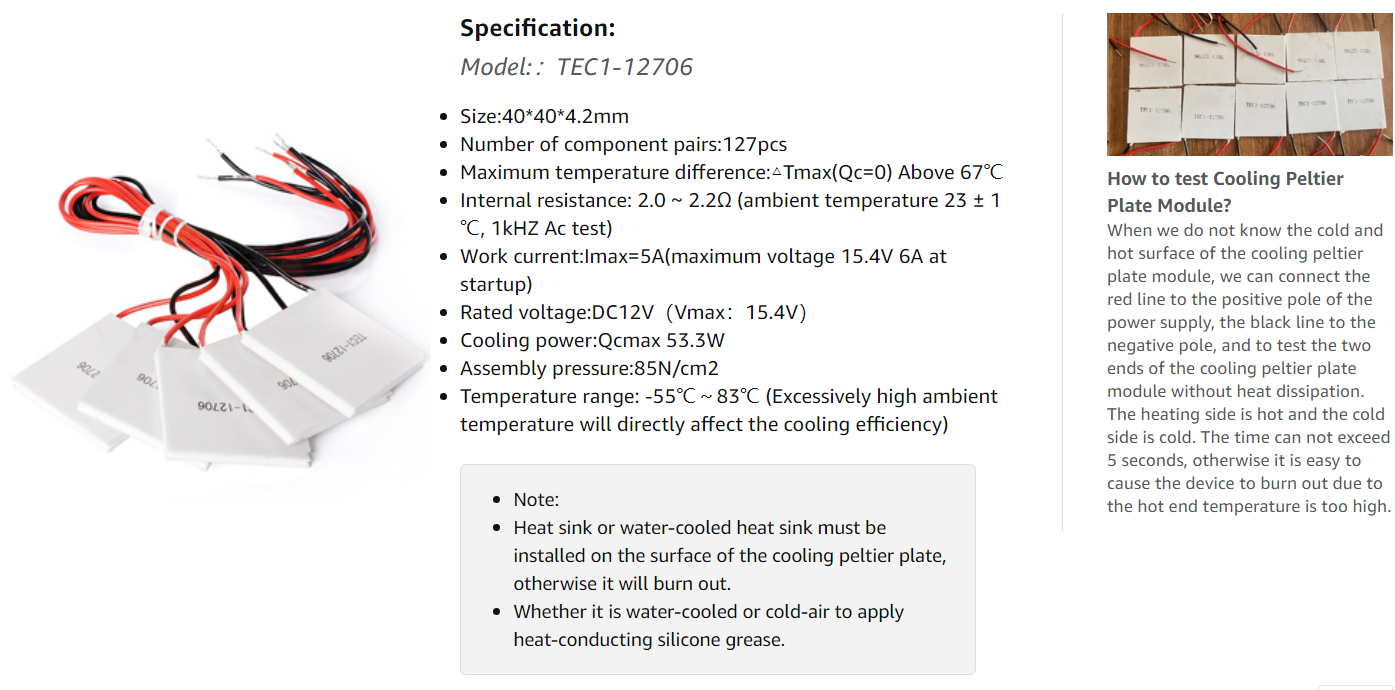

  • Model: TEC1-12706.
  • Size: 40mm x 40mm x 3.6mm.
  • Refrigeration power: Qcmax 50-60W.
  • Storage Conditions: -40℃ ~ 60 ℃
  • Working Current: 4.3-4.6 A (rated 12V); Imax: 6A.

The installation and use of the cooling peltier plate module:

  • You can prepare a little heat conductive silicone grease and a dry battery before installation, then connected to the cooling peltier plate module two lead wires, you can feel one side obviously cool and the other side heat.

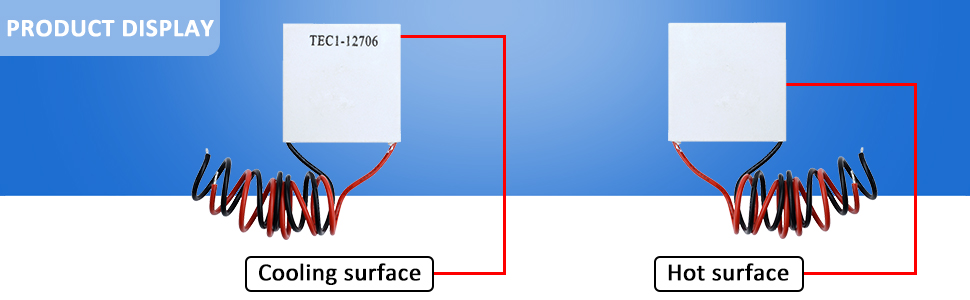

  • Don't forget the polarity of the lead wire and determine the cold and hot end of the cooling peltier plate module.
  • If you want to get a larger amount of cold making, it is suggested to adopt a two-stage cooling method by stacking up two pieces, and the cold surface of the upper one absorbs the heat of the following one.
  • If there are conditions can be selected three-level, but there must be high-power power support.

Package included:

5x TEC1-12706 Cooling Peltier Plate Module
